Big Foot multi frame - 1000x1200mm - 4x330mm feet
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
We believe in strong personal service. Do not hesitate to contact us with the slightest questions or concerns!
Description
Article no.: BFS-1217-000

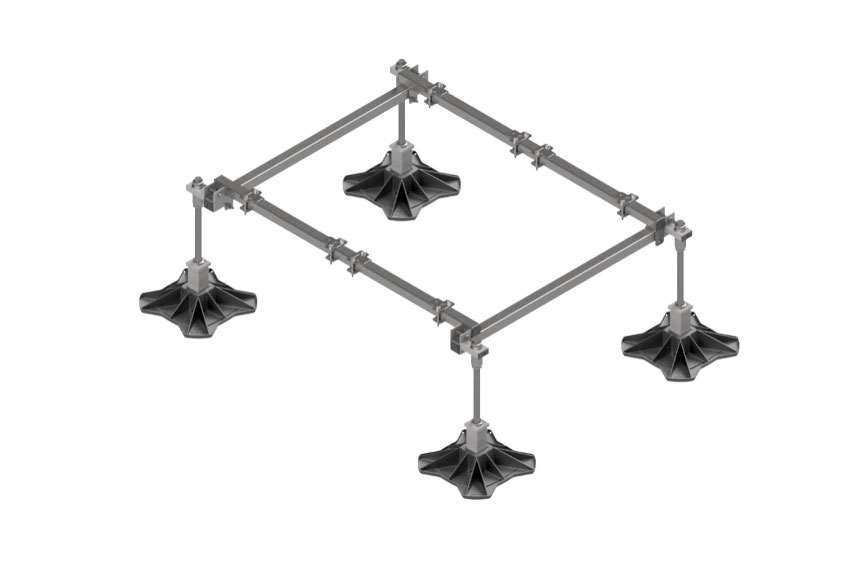

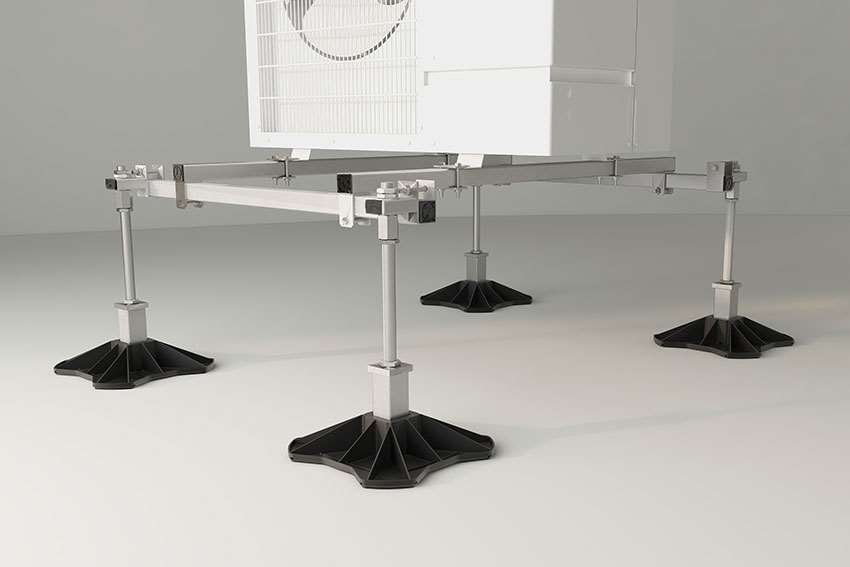

Big Foot Multi Frame 1000 × 1200 mm (BFS-1217-000) is a robust mounting frame for the safe installation of HVAC equipment, heat pumps, chillers and ventilation units on roofs. The modular design allows the frame to be expanded in any direction with extensions, providing great flexibility in installations.
The frame is made of hot-dip galvanized steel for high durability and corrosion protection and comes boxed with mounting kit for quick and easy installation. The system is equipped with 4 x 330 × 330 mm feet in fiberglass reinforced nylon with EPDM mat that protects the roof surface and provides stable support.
Product information

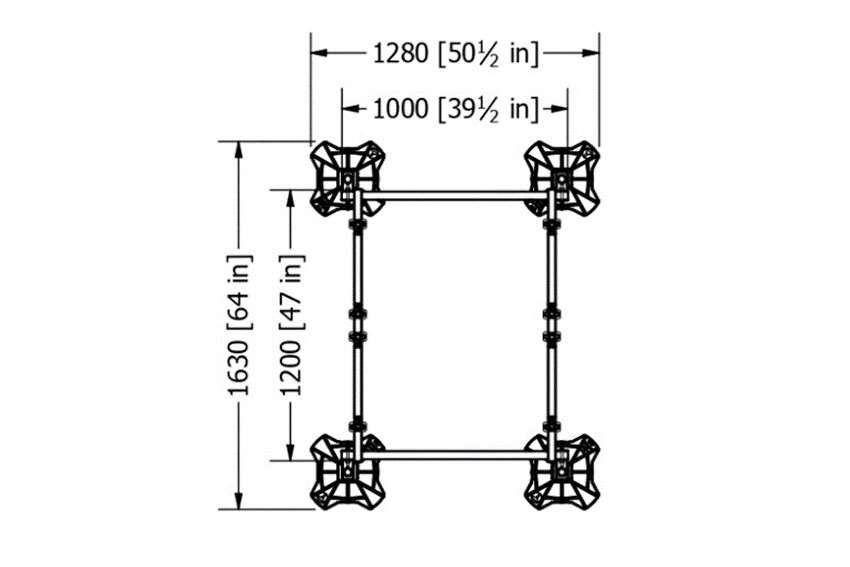

- Dimensions: 1000 × 1200 mm
- Article number: BFS-1217-000
- Feet: 4 × 330 mm
- Height adjustment: 330-610 mm
- Max load: 500 kg
- Material: Hot-dip galvanized steel
A stable and flexible stand solution for professional HVAC installations on roofs.
