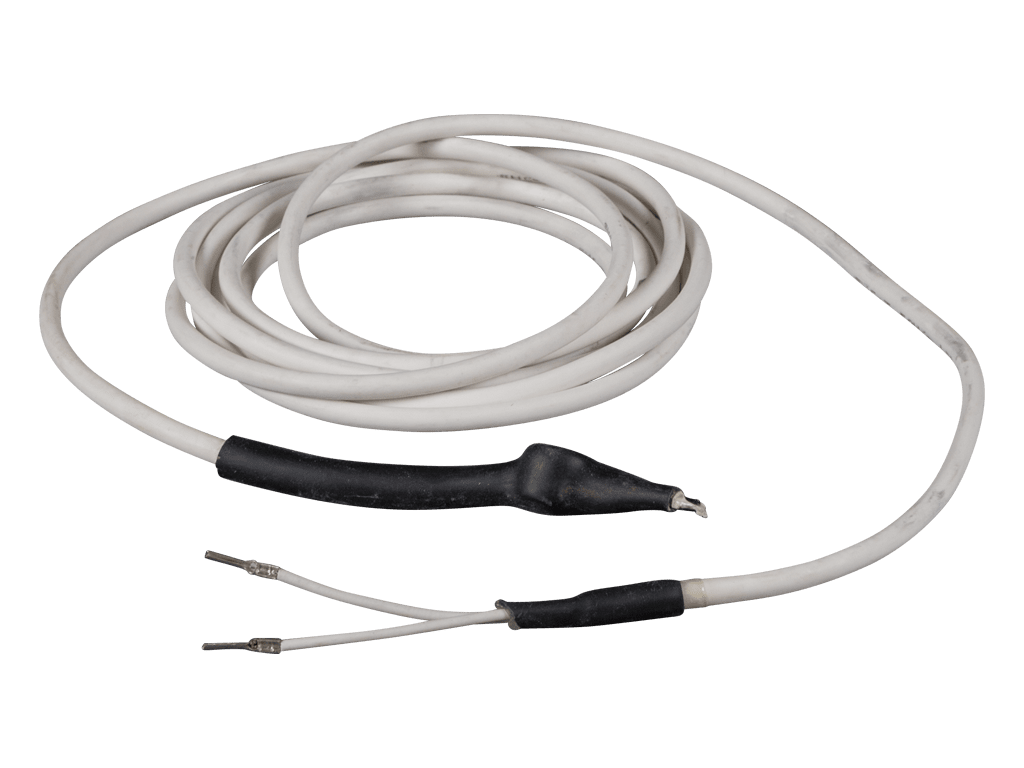

Heating cable, 2.5m, 50w/m, end thermostat

This high performance 2.5 meter heating cable is equipped with an integrated thermostat located at the end of the heating zone. It is specifically designed to be mounted on the outside of the heat exchanger of the outdoor part of an air source heat pump. The design effectively prevents icing in the event of heavy snowfall or damp weather conditions, for example. The product is not intended for pressurized water systems.

Features:

• High power: 50 W/m for fast and efficient heating
• Flexible and durable cable - easy to install
• Integrated thermostat at the cable end for precise control
• Mounted rubber grommet for safe cable routing
• Splice between hot and cold cable clearly marked with black line
• When drilling: drill an 8 mm hole

Technical specification:

• Cable length (hot cable): 2.5 meters
• Cold cable: 1 meter
• Power: 50 W/m, 230 V
• Thermostat mode: Turns on at +2 °C, Turns off at +8 °C, Max temperature deviation: ±1.5 °C
• Cable diameter: Ø6 mm
• End sleeve: Ø16.8 mm
• Rubber grommet: Yes, fitted
• Protection class: IPX7 (if desired, can be added)
• Approval: CE, REACH (can be added if relevant)

A robust and energy-efficient solution that provides reliable frost protection for the heat pump outdoor unit - even in harsh winter conditions.
