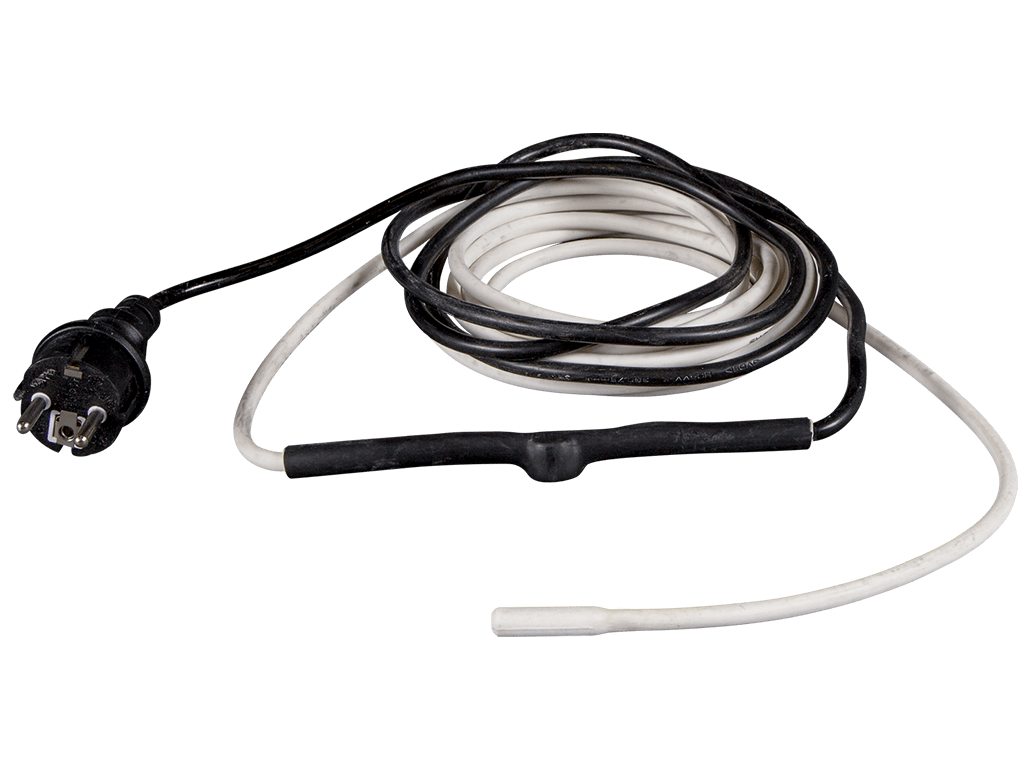

Heating cable, 7m, 15w/m, with thermostat
Heating cable 7 m - With central thermostat, effective frost protection for condensate drain
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
We believe in strong personal service. Do not hesitate to contact us with the slightest questions or concerns!
Description
Article no.: 7007237
The 7 meter heating cable is ideal for protecting drainage hoses and plastic pipes from freezing during winter. It has an integrated thermostat that turns on at +2°C and off at +8°C, providing energy efficient operation. The cable has a pre-assembled plug and fitted rubber grommet for easy installation.
Protects 19 mm hose to -35 °C and 25 mm hose to -28 °C.
Great! Here's a common technical specification for heating cables with a center-mounted thermostat, adapted for product pages on the webshop. You can use this on each product, adjusting only the heating cable length (1-15 meters):
Technical specification - Heating cable with center thermostat
| Cable type | Heating cable with integrated thermostat between hot and cold cable |
| Heating cable, length | 1-15 meters (depending on model) |
| Cold cable, length | 2 meters |
| Power output | 15 W/m, 230 V |
| Thermostat, on | +2 °C |
| Thermostat, off | +8 °C |
| Max deviation | ±1,5 °C |
| Cable diameter | Ø6 mm |
| End sleeve | Ø8,1 mm |
| Minimum bending radius | 25 mm minimum bending radius |
| Enclosure class | IPX7 (water protected) |
| Approvals | CE, REACH |
| Plug | Pre-assembled, earthed |
| Rubber grommet | Yes, fitted |
| Installation | For external installation in drainage hose or plastic pipe for condensate drain |
| Not to be used in | Pressurized water systems |
| Protection capability | 19 mm hose with 6 mm insulation to -35 °C25 mm hose with 6 mm insulation to -28 °C |
| Hole drilling for cable | 8 mm hole at the grommet |
