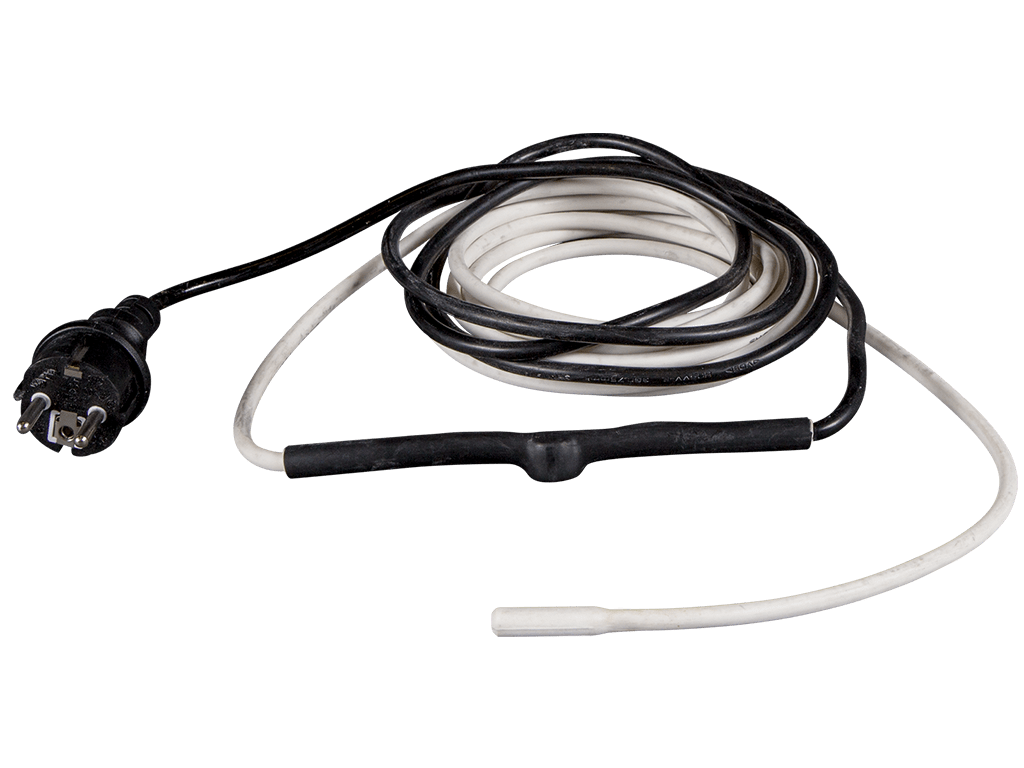

Heating cable, 4m, 15w/m, with thermostat
Efficient anti-freeze solution for condensate drains
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
We believe in strong personal service. Do not hesitate to contact us with the slightest questions or concerns!
Description
Article no.: 7007234
This heating cable is equipped with a centrally located, built-in thermostat between the hot and cold cable for automatic temperature control. The cable is designed for installation in drainage hoses or plastic pipes that carry away condensation water - for example from air heat pumps or cooling units. With a pre-assembled plug, the cable is easily connected to an earthed electrical socket via an RCD.
The heating cable must not be used in pressurized water systems. It is equipped with a pre-assembled rubber grommet that simplifies sealing during installation.
Advantages:
- Strong yet flexible construction
- Quick and easy installation - no electrical installation required
- Integrated thermostat activates at +2°C and shuts off at +8°C
- Protects hoses down to -35°C (depending on insulation and dimension)
- Drill hole for penetration: 8 mm
Technical specification:
- Cable length (heating cable): 4 meters
- Cold cable: 2 meters
- Power: 15 W/m, 230 V
- Thermostat on/off: +2 °C / +8 °C (±1.5 °C)
- Cable diameter: Ø6 mm
- End sleeve: Ø8.1 mm
- Protection class: IPX7
- Minimum bending radius: 25 mm
- Rubber grommet: Yes, fitted
- Approval: CE, REACH
A flexible solution for effective frost protection in smaller installations, where automatic temperature control provides worry-free operation.
