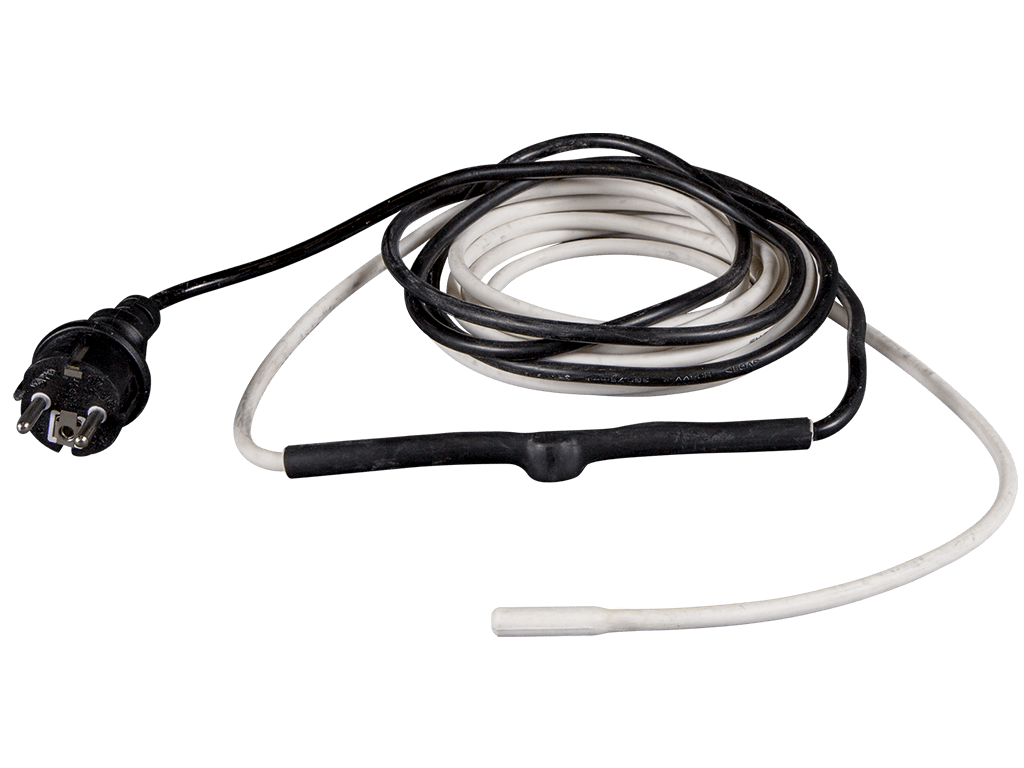

Heating cable, 1m, 15w/m, with thermostat
Heating cable 1 m - with integrated central thermostat (15 W/m)
Effective frost protection for short condensate drains and drainage hoses
Effective frost protection for short condensate drains and drainage hoses
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
We believe in strong personal service. Do not hesitate to contact us with the slightest questions or concerns!
Description
Article no.: 7007231
Compact and powerful heating cable of 1 meter with integrated thermostat placed between hot and cold cable. It is specially designed for installation in drain hoses and plastic pipes used for draining condensation water - for example from air source heat pumps. The cable is easily connected via a pre-assembled plug to an earthed wall socket with an RCD. The product is not intended for pressurized water systems.
Features:
- Pre-assembled plug for quick and easy installation
- Soft and flexible cable with high wear resistance
- Mounted rubber grommet for safe penetration
- Integrated splice between hot and cold cable
- Frost protection for external installation:
- 19 mm hose + 6 mm insulation: protection down to -35 °C
- 25 mm hose + 6 mm insulation: protection down to -28 °C
- For penetration: drill an 8 mm hole
Technical specification:
- Cable length (hot cable): 1 meter
- Cold cable: 2 meters
- Power: 15 W/m, 230 V
- Thermostat mode: Turns on at +2 °C, Turns off at +8 °C, Max temperature deviation: ±1.5 °C
- Cable dimensions: Ø6 mm
- End sleeve: Ø8.1 mm
- Minimum bending radius: 25 mm
- Rubber grommet: Yes, fitted
- Protection class: IPX7 (waterproof)
- Approvals: CE, REACH
A perfect solution for those who need reliable protection against freezing in short hose systems and condensation drains.
