Description
Article no.: BFS-5300-000
Description:
Bigfoot “H” support set without rod
For the support of ventilation ducts, H Tech Set 330 for multiple roof-mounted HVAC constructions
pipes and/or hoses

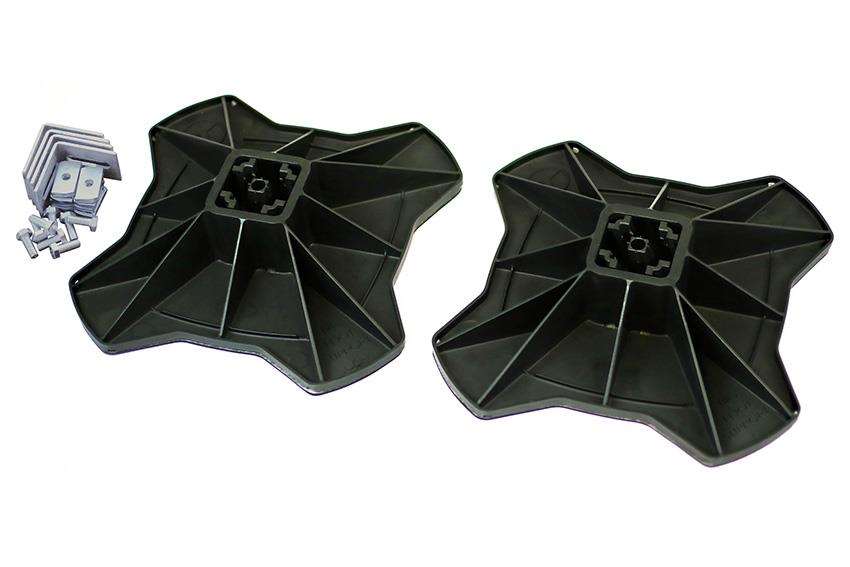

Kit includes 2 feet, 2 anti-vibration mats, 4 L-bases 330x300 mm with fixed EPDM mat
Optimal wind resistance
8 bolts + nuts (M10), for pipes 38x40 or 41x41 mm
No profiles included!

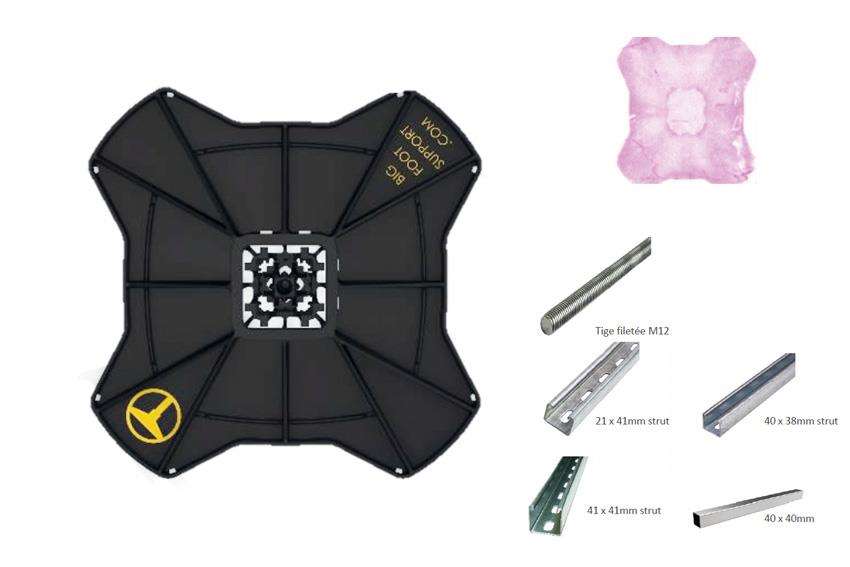

Fits 21x41, 40x38, 41x41 mm rail, 40x40 and M12 threaded rod
EPDM provides a higher surface-to-surface grip
Maximum stability
Optimal weight distribution over the entire footprint (max. 300 kg/set)
100% recycled glass-filled nylon construction for the feet

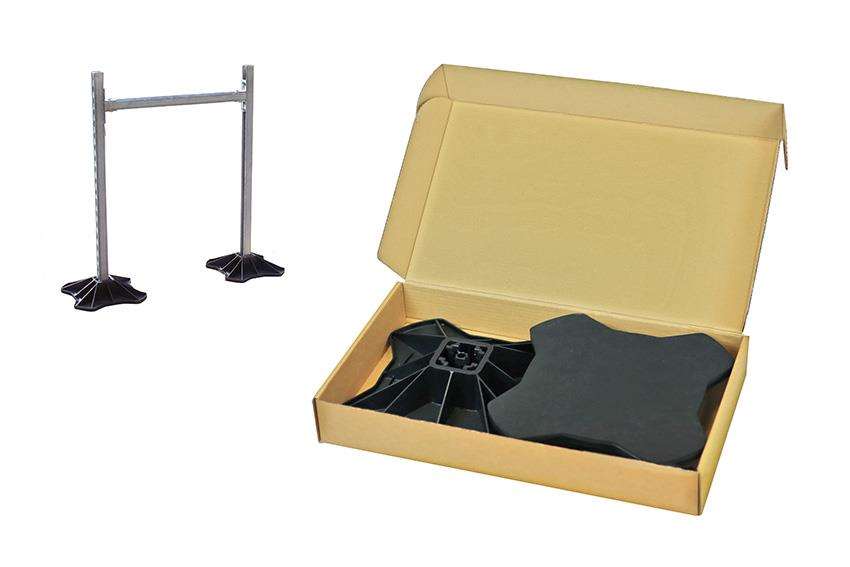

1 kit: 2x foot with glued mat, 4x brackets & fasteners, 1x instructions
Glass fiber reinforced nylon
Rail or M12 rod never included in kit / Optional angled mat accessory 2.5° for use on uneven ground
