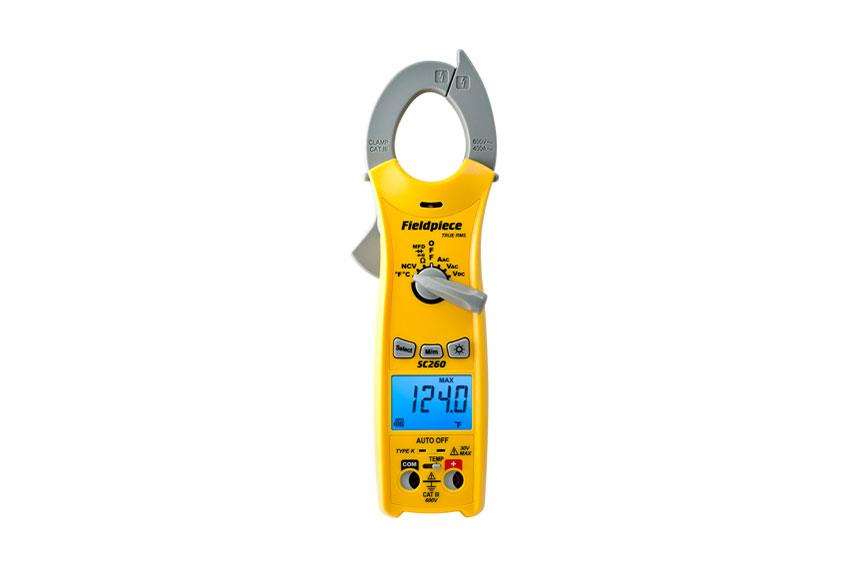

Fieldpiece Multimeter Temp & Amp SC260
Fieldpiece SC260 Multimeter - Temperature and Current in one professional tool
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
We believe in strong personal service. Do not hesitate to contact us with the slightest questions or concerns!
Description
Article no.: FPI-8320-000
The Fieldpiece SC260 is a versatile multimeter for temperature and current measurement that offers high accuracy and reliability for HVAC technicians. With a clear display, long battery life and robust construction, the SC260 is an indispensable tool for troubleshooting and service work.
Key features and benefits
- Display with 4000 counts - provides clear and accurate measurement.
- Backlight - blue color with 5 minute duration and automatic shut-off for working in dark environments.
- Automatic zero point - simplifies accurate temperature measurement.
- Overload protection - up to 600 V DC or AC RMS, with UL-listed test leads.
- Measurement rate: 3 times per second for fast updating of values.
- APO (Auto Power Off) - approximately 30 minutes for longer battery life.
- Low battery indication - clear warning when voltage drops below operating level.
- Test leads - gold plated with removable safety caps, CATIII 600V or higher.
- Robust and compact - dimensions: 205.5 x 67.4 x 45.1 mm, weight: approx. 265 g including battery.
Technical specifications
- Operating environment: 0°C to 50°C (<70% RH)
- Storage temperature: -20°C to 60°C (<80% RH, with battery removed)
- Accuracy: Specified @ 23°C ±5°C, <75% RH
- Temperature coefficient: 0.1 × specified accuracy per °C [0-19°C, 28-50°C]
- Battery: 9V alkaline (NEDA 1604A, IEC 6LR61)
- Battery life: about 150 hours typical (SC260)
- Altitude: Up to 2000 m (6562 ft)
- Overrange indication: OL or -OL shown on display
- Dimensions: 205.5 mm (H) x 67.4 mm (W) x 45.1 mm (D)
