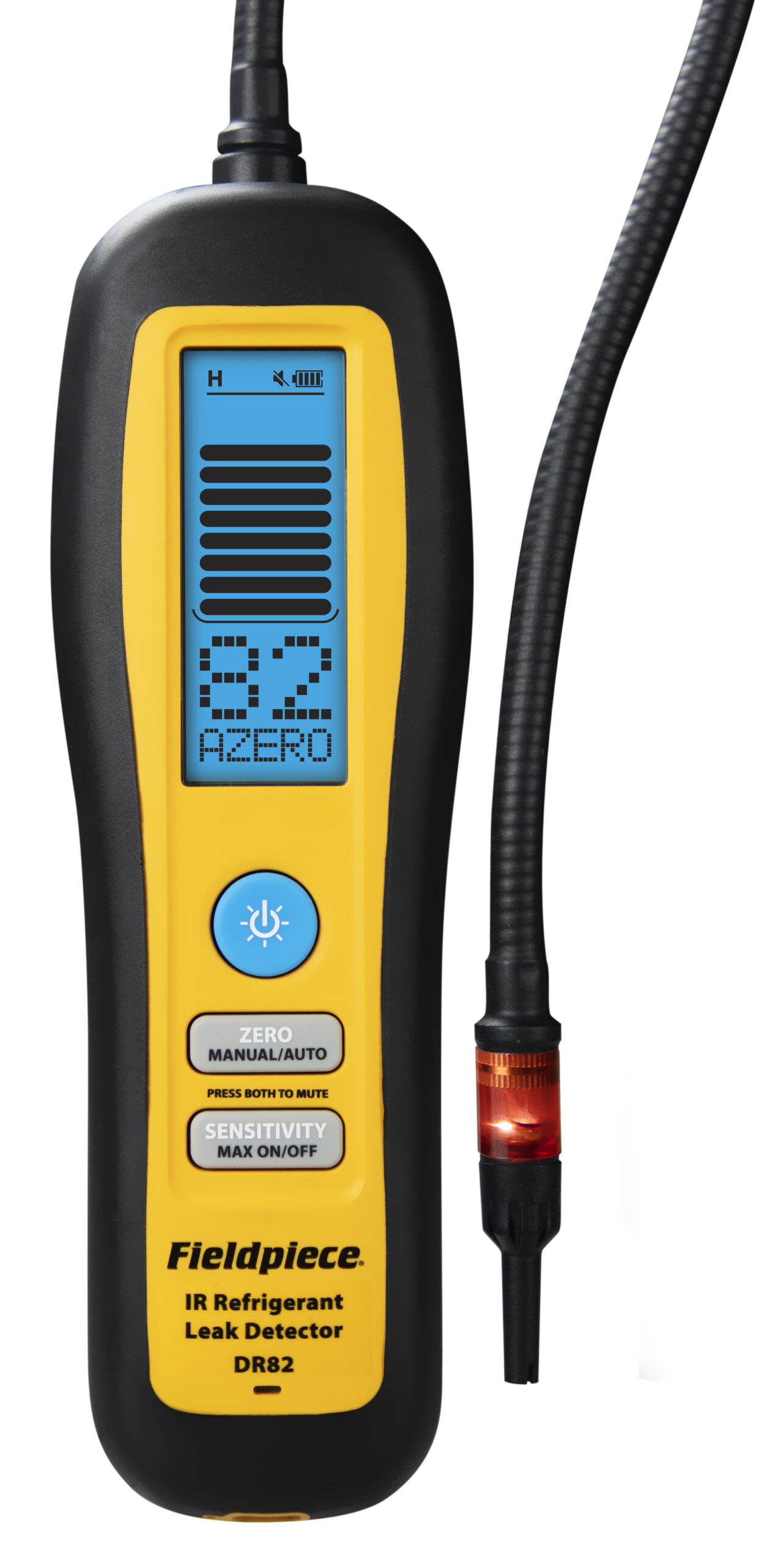

Fieldpiece Infrared Leak detector DR82

The Fieldpiece DR82 is an advanced infrared leak detector designed to provide technicians with the highest level of accuracy, reliability and ease of use in detecting refrigerant leaks. With long sensor time, fast response and multiple sensitivity levels, this is the tool you can rely on for professional HVAC and refrigeration work.

Key features and benefits

• Long-life infrared (IR) sensor - up to 10 years of use.

• Four sensitivity levels - high, medium, low and turbo, for flexible customization

• Maximum sensitivity: 1 g/year (stationary), 3 g/year (moving).

• Fast response (<1 second) - identify leaks immediately.

• Short recovery time (<5 seconds) - ready for the next measurement quickly.

• Clear feedback - red LED, LCD bar graph, digital display and audible signal.

• Compatible with multiple refrigerants - HFCs, HCFCs, CFCs, HFOs and blends.

• Long battery life - up to 10 hours of operation per charge.

• Automatic shutdown after 10 minutes of inactivity for longer life.

• Water and dust protection - designed to IP54 rating.


Technical specifications

• Sensor type: Infrared (IR)

• Sensor lifetime: Approx. 10 years

• Sensitivity levels: High, medium, low, turbo

• Max sensitivity: 1 g/year (stationary), 3 g/year (moving)

• Response time: <1 second

• Recovery time: <5 seconds

• Refrigerants: HFC, HCFC, CFC, HFO and blends

• Battery: 3.7 VDC, 2600 mAh (not replaceable)

• Battery life: Up to 10 hours (with backlight off)

• Charging time: About 6 hours (charger included)

• Automatic shutdown: Yes, after 10 minutes

• Operating environment: 0°C to 40°C, <75% RH (non-condensing)

• Storage temperature: -20°C to 60°C, <80% RH

• Weight: 400 g
