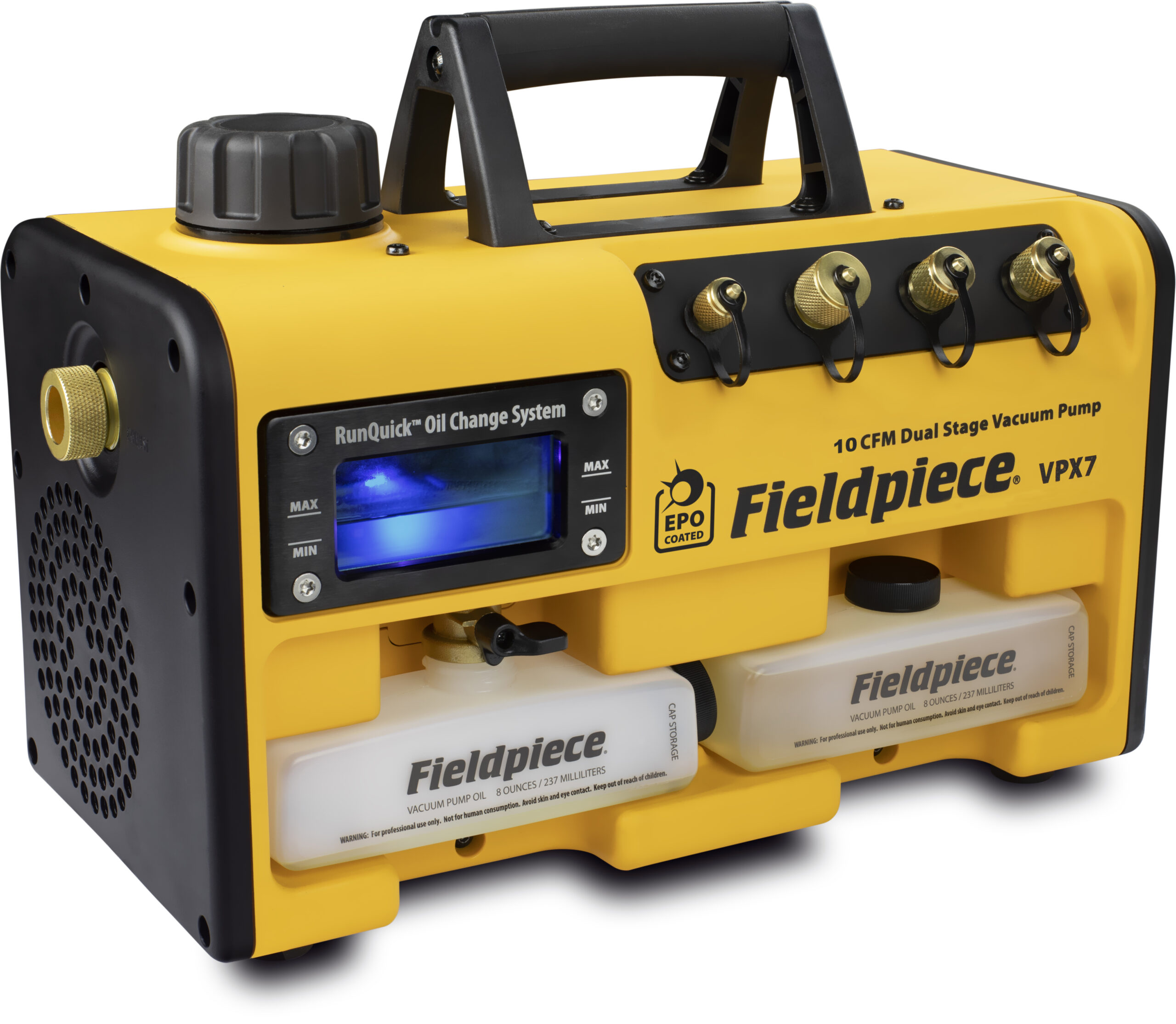

Fieldpiece Vacuum pump VPX7. 280 lit/min

The Fieldpiece VPX7 vacuum pump is a high-performance vacuum pump designed for refrigeration and heat pump technicians who demand speed, safety and reliability. With a flow rate of 10 CFM (280 liters/minute), two-stage rotary vane compressor and A2L certification, this vacuum pump is built for professional use in modern HVAC installations.

Key features and benefits

• High capacity: Flow rate of 10 CFM (280 l/min) for fast evacuation of systems.

• A2L certified: Safe to use with modern refrigerants, including R32.

• Efficient motor: 3/4 HP brushless DC motor with 2500 rpm for long life and high efficiency.

• Two-stage compressor: Rotary vane for maximum vacuum and stable operation.

• Ultimate vacuum: Down to 15 microns at the inlet ports.

• Oil management: 237 ml capacity, blue LED backlight for easy level control and ball valve for quick draining.

• Flexible port sizes: (1) 1/4", (2) 3/8" and (1) 1/2" for compatibility with different systems.

• Compact and lightweight: Only 10.9 kg and sleek size makes it easy to transport and use in the field.

• Robust construction: Built to withstand daily professional use in demanding environments.



Technical specifications

• Flow rate: 280 l/min (10 CFM)

• A2L certification: Yes (incl. R32 compliant)

• Compressor: Two-stage rotary vane

• Motor: 3/4 HP brushless DC motor

• Speed: 2500 rpm

• Power source: 120 VAC, 60 Hz, 1 phase

• Power consumption: 6.0 AAC nominal

• Final vacuum: 15 microns at input ports

• Oil volume: 237 ml (Fieldpiece vacuum pump oil recommended)

• Oil items: OLJA8X3, OLJA32, OLJA128

• Oil lighting: Blue LED for clear level control

• Oil drainage: Ball valve

• Port sizes: (1) 1/4", (2) 3/8", (1) 1/2"

• Dimensions: 201 x 296 x 406 mm

• Weight: 10,9 kg
