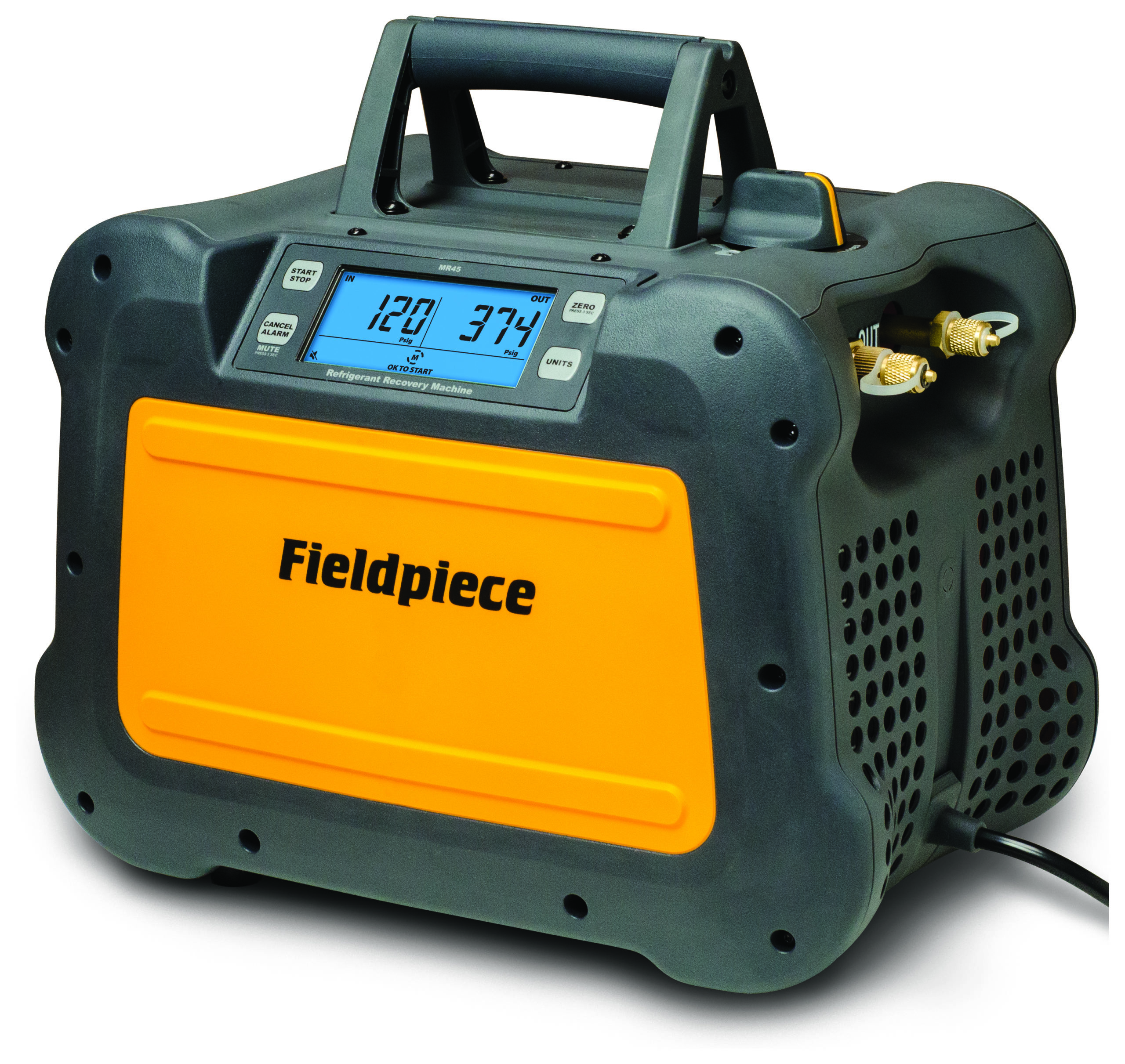

Fieldpiece Recovery unit A2L

The Fieldpiece A2L digital recovery machine is designed for professional refrigeration and heat pump installers who need a reliable, fast and safe tool when bleeding refrigeration systems. With a robust construction, high performance and support for modern refrigerants including R32 and other A2L gases, this bleeder is an obvious choice for HVAC professionals.

Key features and benefits

• LCD display (2 x 10,000) with clear status messages and blue backlight.

• Fast measurement - 3.3 readings per second for accurate real-time information.

• Wide pressure range: -30" Hg to 600 psig (-76 cmHg to 41 Bar).

• Automatic shutoff at high pressure: 558 psig (38 Bar) for added safety.

• Oil-less two-cylinder compressor with variable smart speed (1 HP DC motor).

• Compact and robust design - only 10 kg, easy to transport and use on site.

• A2L ready - compatible with R32 and other modern environmentally friendly refrigerants.

• Easy servicing with bi-directional ball valve and integrated stainless steel mesh filter (9 mm).



Technical specifications

• Display: LCD (2 x 10 000) with blue backlight

• Measuring speed: 3.3 times/sec (nominal)

• Pressure range (in/out): -30" Hg to 600 psig (-76 cmHg to 41 Bar)

• High pressure shutoff: 558 psig (38 Bar)

• Resolution: 1 psig (1" Hg), 0.05 bar, 0.01 Mpa, 5 Kpa

• Accuracy: ±0.5" Hg (vacuum), ±(0.6% of reading +2 psig)

• Final Recovery Vacuum: 14.9" Hg

• Compressor: Two-cylinder oil-free, reciprocating

• Motor: DC 1 HP, variable smart speed

• Power source: 190-255 VAC, 50/60 Hz, 1 phase

• Max current draw: 7.0 AAC

• Valve: Single bidirectional ball valve

• Filter: 9 mm stainless steel mesh screen

• Dimensions: 376 x 250 x 344 mm

• Weight: 10 kg

• Operating environment: 0°C to 50°C
